Precio AHORA:
63,37€
Marca | msi |
Modelo | A520M PRO (911-7D14-011) |
Plataforma | - M-ATX (24.4 cm x 21 cm) |
Chipset | - AMD® A520 chipset |
CPU Soportado |
- Admite AMD® Ryzen ™ 1st, 2nd y 3rd Gen Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors |
Memoria | - 2 x DDR4 memory slots, hasta 64GB Soporta DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Soporta DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE - 1DPC 1R max speed 4600 MHz - 1DPC 2R max speed 3866 MHz - Dual channel memory architecture - Soporta non-ECC UDIMM memory - Soporta ECC UDIMM memory (non-ECC mode) - Soporta un-buffered memory |
Slots Expansión | - 1 x PCIe x16 slot (PCI_E2) - 2 x PCIe 3.0 x1 slots |
Gráficos | - 1 x VGA - 1 x HDMI 2.1 - 1 x DisplayPort |
Puertos E/S,
Conectores
|
Internos
- 1 x 24-pin ATX main power
- 1 x 8-pin ATX 12V power - 4 x SATA 6Gb/s - 1 x Serial port - 1 x M.2 slot (M-Key) - 1 x USB 3.2 Gen 1 5Gbps - 2 x USB 2.0 - 1 x 4-pin CPU fan - 1 x 4-pin system fan - 1 x Front panel audio - 2 x System panel - 1 x Chassis Intrusion - 1 x 4-pin RGB LED - 1 x 3-pin RAINBOW LED - 1 x TPM module - 1 x Clear CMOS jumper Externos

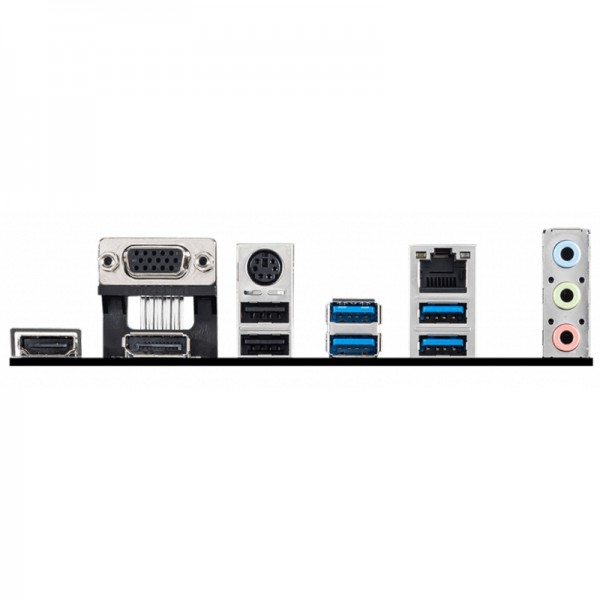

- 1 x VGA- 1 x PS / 2 puerto combinado - 2 x USB 2.0 - 1 x DisplayPort - 1 x LAN - 1 x HD Audio - 1 x HDMI - 4 x USB 3.2 Gen1 |
Otras
Características
|
Almacenamiento
Montaje- 4 x SATA 6Gb/s ports - 1 x M.2 slot (Key M) RAID - Soporta RAID 0, RAID1 y RAID 10 USB - 2 x USB 3.2 Gen 1 - 6 x USB 2.0 - 4 x USB 3.2 Gen 1 Red - 1 x controlador Realtek® 8111H Gigabit LAN Audio - Códec Realtek® ALC892 - Audio de alta definición de 7.1 canales - 6 x agujeros de montaje |
